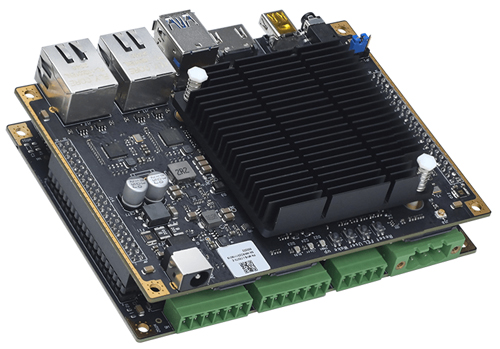

MYD-LT527-GK-B IPC Box - Image 3
MYIR | Solutions

MYD-LT527-GK-B IPC Box

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

The MYD-LT527-GK-B IPC Box is a versatile and rugged industrial-grade computing solution designed for edge computing applications. Powered by the Allwinner T527 SoC with an Octa-core ARM Cortex-A55 CPU, 6 TOPS NPU, and 4K video processing, this box features 4GB LPDDR4, 32GB eMMC storage, and comprehensive connectivity options. With dual Gigabit Ethernet, WiFi/Bluetooth, and 4G LTE support, it is perfect for industrial automation, AI-powered applications, and multimedia processing. The system supports Linux and Ubuntu OS, and comes with detailed SDKs and source code for easy development..

Request Purchase
  • Detail
  • Special Features
  • Specification

The MYD-LT527-GK-B IPC Box integrates the Allwinner T527 SoC, featuring an Octa-core ARM Cortex-A55 CPU clocked at up to 1.8GHz and a 2 TOPS NPU, offering a powerful combination for real-time AI inferencing. The system is equipped with 4GB LPDDR4 memory and 32GB eMMC storage, expandable through a MicroSD card slot.

Connectivity is comprehensive, with dual Gigabit Ethernet, USB 3.0, USB 2.0, RS232, RS485, and CAN ports, alongside WiFi/Bluetooth and a 4G LTE option via the PCIe slot. The device also supports high-quality video output with HDMI and Mini DisplayPort, making it ideal for multimedia processing and AI video analytics.

The MYD-LT527-GK-B is fanless, designed for industrial-grade applications with an operating temperature range of -40°C to +85°C. It runs Linux and Ubuntu OS, providing a robust platform for AI development with access to source code, drivers, and SDKs.

The MYD-LT527-GK-B IPC Box is a versatile and rugged industrial-grade computing solution designed for edge computing applications. Powered by the Allwinner T527 SoC with an Octa-core ARM Cortex-A55 CPU, 6 TOPS NPU, and 4K video processing, this box features 4GB LPDDR4, 32GB eMMC storage, and comprehensive connectivity options. With dual Gigabit Ethernet, WiFi/Bluetooth, and 4G LTE support, it is perfect for industrial automation, AI-powered applications, and multimedia processing. The system supports Linux and Ubuntu OS, and comes with detailed SDKs and source code for easy development.



General Features

  • Processor: Allwinner T527 SoC (Octa-core ARM Cortex-A55 up to 1.8GHz, 2 TOPS NPU)

  • Memory: 4GB LPDDR4

  • Storage: 32GB eMMC, 32KB EEPROM, MicroSD card slot

  • Power Supply: DC 12V ± 20% 2A

  • Operating Temperature: -40°C to +85°C

  • Dimensions: 130mm x 93.5mm x 44mm (without mounting bracket)

  • Certification: CE, FCC

Connectivity

  • Ethernet: 2x Gigabit Ethernet

  • USB: 1x USB 3.0, 4x USB 2.0

  • Serial Ports: RS232, RS485, CAN

  • Wireless: WiFi (supports IEEE 802.11a/b/g/n/ac), Bluetooth 5.2

  • Expansion: PCIe slot for 4G LTE module

  • Display: HDMI, Mini DisplayPort (supports 4K output)

  • Audio: 3.5mm Audio Jack

Software & Drivers

  • Operating Systems: Linux, Ubuntu

  • AI Frameworks: TensorFlow, TensorFlow Lite, Keras, PyTorch, ONNX

  • Drivers: Full suite including USB, Ethernet, Audio, WiFi, CAN, GPIO, HDMI, MIPI CSI, Touch screen

Physical Characteristics

  • Dimensions: 130mm x
