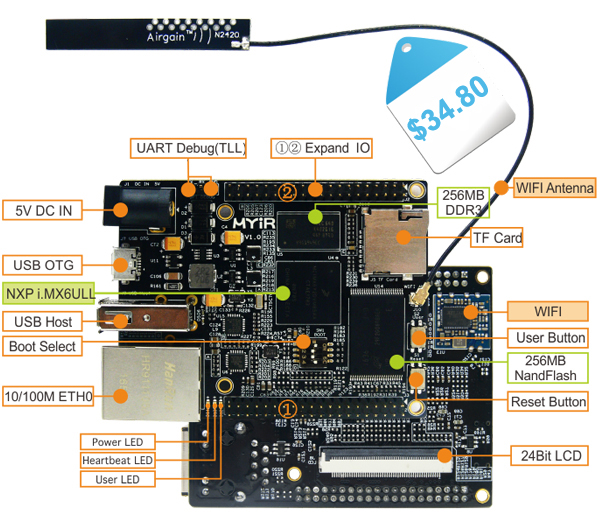

MYS-6ULX Single Board Computer - Image 3
MYIR | Single Board Computers

MYS-6ULX Single Board Computer

Precision You Can Trust
NABL-Accredited Calibration | Available on Request

The MYS-6ULX Single Board Computer is a compact and high-performance solution designed for Industry 4.0 and IoT applications. Powered by the NXP i.MX 6UltraLite / 6ULL ARM Cortex-A7 processor (up to 1.8GHz), this board offers up to 6 TOPs NPU for AI-driven tasks, making it ideal for edge computing and industrial control systems. With 256MB DDR3 memory, 256MB NAND flash, and versatile connectivity options, including USB, Gigabit Ethernet, and WiFi/Bluetooth, it supports Linux and Ubuntu OS. Customizable with expansion boards for additional I/O and connectivity, it’s a cost-effective solution for embedded systems..

Request Purchase
  • Detail
  • Special Features
  • Specification

The MYS-6ULX Single Board Computer integrates the powerful NXP i.MX 6UltraLite / 6ULL processors with AI processing capability (up to 6 TOPs NPU) for intelligent data handling. With 256MB DDR3 RAM and 256MB NAND flash storage, it offers flexible performance and is expandable with MicroSD cards.

The board has a compact size of 70mm x 55mm, making it suitable for embedded systems in constrained spaces. It supports a wide range of communication interfaces such as USB 3.0, Gigabit Ethernet, WiFi/Bluetooth, and CAN, alongside options for custom I/O using the MYB-6ULX Expansion Board.

The system is fanless, with rugged construction, designed for industrial environments with operating temperatures ranging from -40°C to +85°C. The MYS-6ULX is equipped with various display interfaces including HDMI and Mini DP, supporting full HD video output.

Pre-configured with Linux and Ubuntu OS, the MYS-6ULX offers extensive driver support, including AI framework compatibility like PaddlePaddle, TensorFlow, and Keras. It also allows for easy customization through its expansion headers.

  • High-Performance Processing

    • Up to 1.8GHz ARM Cortex-A7 processor with 6 TOPs NPU for efficient AI inferencing and real-time applications.

  • Industrial and IoT Application Focus

    • The MYS-6ULX-IND variant is perfect for Industry 4.0 applications, supporting extended temperature ranges from -40°C to +85°C, while the MYS-6ULX-IOT is geared toward IoT solutions.

  • Extensive Connectivity Options

    • Features include USB 3.0, USB 2.0, Gigabit Ethernet, RS232, RS485, and CAN ports, enabling versatile communication for industrial and IoT tasks.

  • Display and Multimedia Capabilities

    • HDMI and Mini DisplayPort for high-resolution video output, along with audio input and output interfaces for multimedia applications.

  • Flexible Expansion Options

    • Two 2.0mm pitch 2x20-pin expansion headers for extending functionality and connecting additional peripherals.

  • Energy-Efficient Design

    • Optimized power consumption of 5V/0.25A for the base board, with options to support displays and peripherals for energy-efficient solutions.

  • Customizable for Specific Needs

    • Option for MYB-6ULX Expansion Board to enhance connectivity with added Ethernet, CAN, RS485, Audio, RTC, and Camera support.

  • Software Compatibility

    • Supports Linux and Ubuntu OS, with drivers and kernel source code available for easy custom development and integration.

General Features

  • Processor: NXP i.MX 6UltraLite / 6ULL ARM Cortex-A7, Up to 1.8GHz, 6 TOPs NPU

  • Memory: 256MB DDR3, expandable up to 2GB

  • Storage: 256MB NAND Flash, 32KB EEPROM, MicroSD slot

  • Power Supply: 5V/0.25A (base board), 5V/0.4A (board with 4.3” LCD), 5V/0.8A (board with 7” LCD)

  • Operating Temperature: -40°C to +85°C (IND version), 0°C to +70°C (IOT version)

Connectivity

  • Ethernet: 1x 10/100Mbps Gigabit Ethernet

  • USB: 1x USB 3.0, 4x USB 2.0

  • Serial Ports: RS232, RS485, CAN

  • Wireless: WiFi (supports IEEE 802.11b/g/n), Bluetooth 5.2

  • Expansion: 2x 2.0mm pitch 2x20-pin headers for additional I/O

  • Display: HDMI, Mini DisplayPort (supports 1080p)

  • Audio: 3.5mm Audio Jack

Software Features

  • OS: Linux, Ubuntu

  • AI Frameworks: TensorFlow, PaddlePaddle, TensorFlow Lite, Keras, PyTorch

  • Driver Support: USB, Ethernet, Audio, WiFi/Bluetooth, HDMI, GPIO

  • Customization: Supports MYB-6ULX Expansion Board for additional I/O and connectivity

Physical Characteristics

  • Dimensions: 70mm x 55mm

  • Weight: N/A

  • Power: 5V, 0.25A (base board)
